Configuration

StaX graph

Database Location

Environment Variable (Recommended for Studios):

# Set before launching Nuke or standalone app
export STOCK_DB=/path/to/shared/database.db

Config File:

Edit config/config.json:

{
    "database_path": "./data/stax.db",
    "default_repository_path": "./repository",
    "preview_dir": "./previews",
    "default_copy_policy": "soft",
    "nuke_mock_mode": false
}

StaX graph

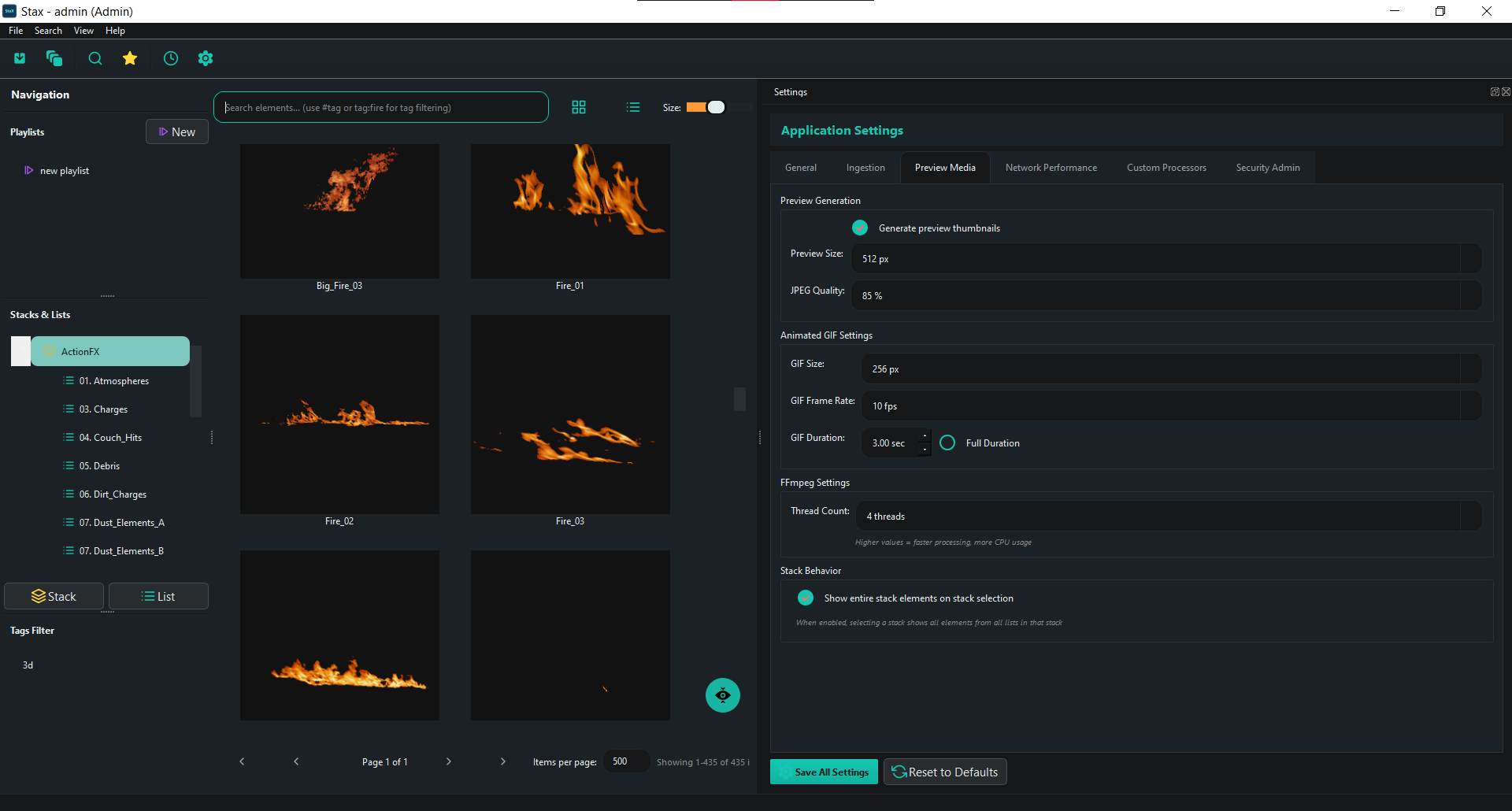

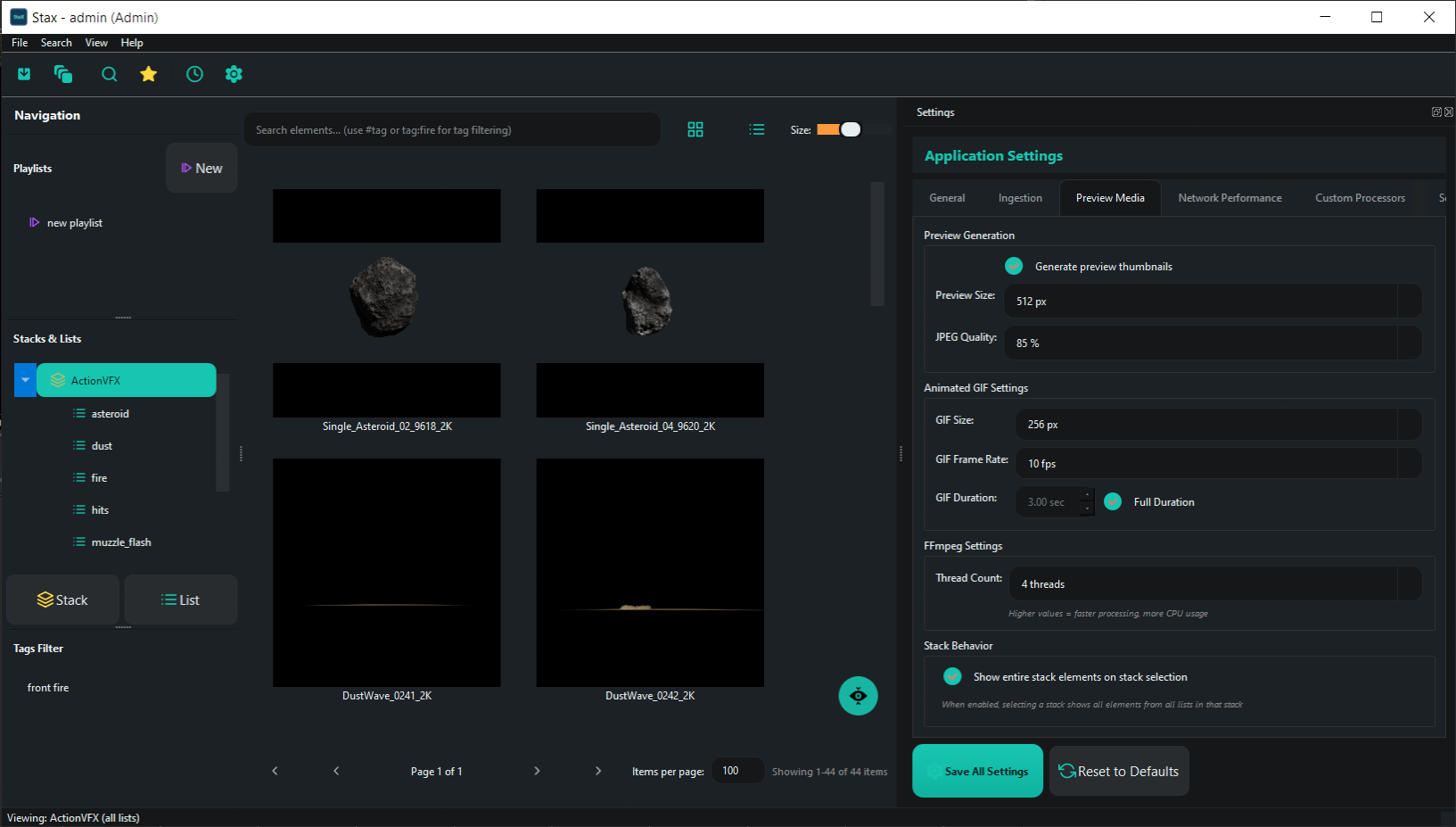

Settings Panel

Open with Ctrl+3 to configure:

General: Database location, user preferences
Ingestion: Copy policy, sequence detection settings, Blender executable override for geometry conversion
Preview & Media: Thumbnail size, GIF settings, video preview options
Network & Performance: Database retries/timeout, cache settings, pagination
Custom Processors: Pre-ingest, post-ingest, and post-import hook scripts

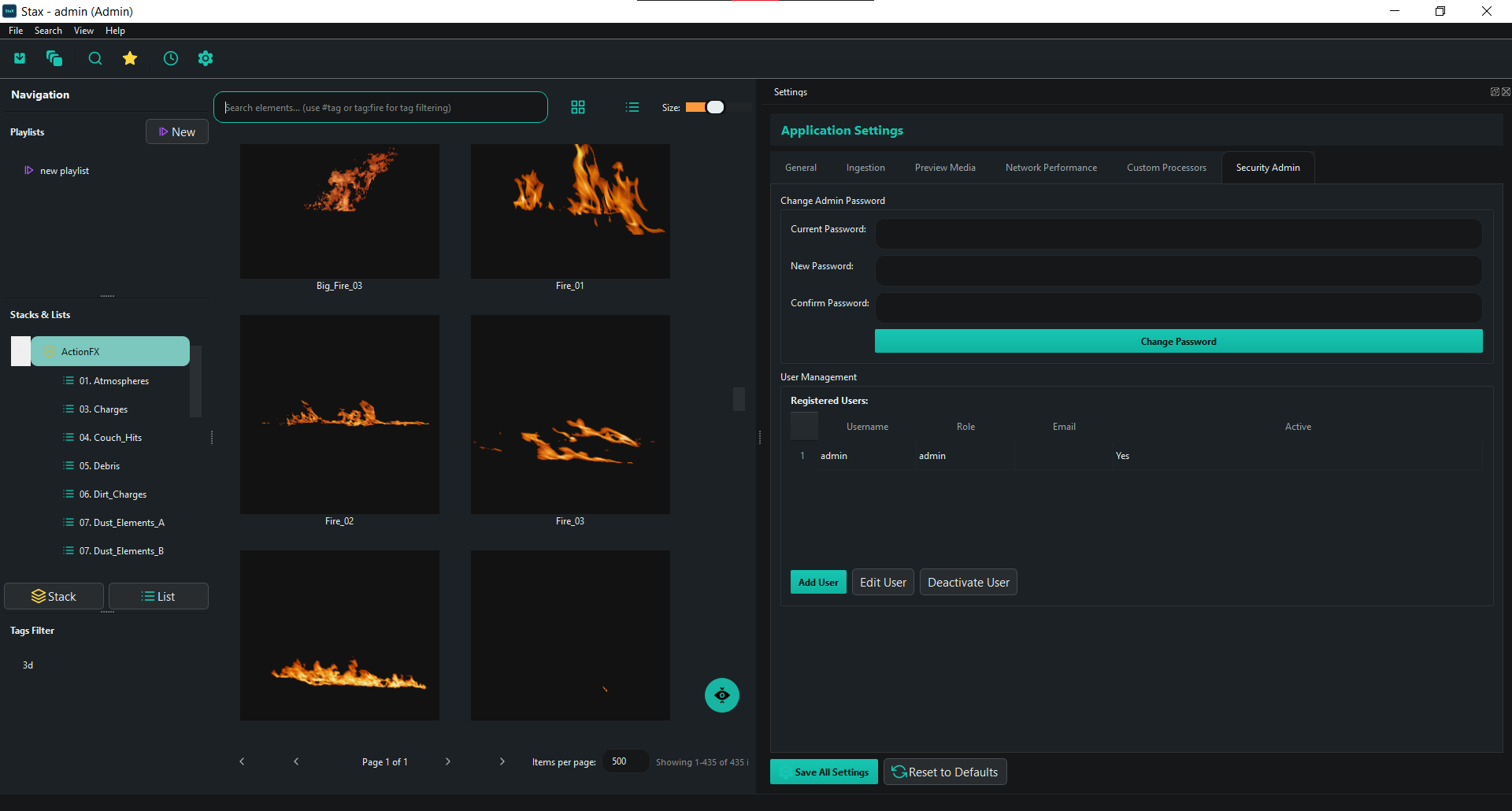

Security & Admin: User management, password changes (admin only)

StaX graph

Custom Processors (Pipeline Integration)

StaX supports custom Python scripts at three points in the workflow:

Pre-Ingest Processor: Runs before files are copied (validation, naming enforcement)
Post-Ingest Processor: Runs after cataloging (metadata injection, external system notifications)
Post-Import Processor: Runs after Nuke node creation (OCIO setup, expression application)

StaX graph

Example Pre-Ingest Hook:

# processors/validate_naming.py
import re

# Context contains: {'name': str, 'filepath': str, 'element_data': dict}
if not re.match(r'^[A-Z]{3}_\d{4}', context['name']):
    result = {
        'continue': False,
        'message': 'File name must match pattern: XXX_####'
    }
else:
    result = {'continue': True}

Configure processor paths in Settings → Custom Processors tab.
